Hinged front screen, fixed panel + door with profile GLASS closure

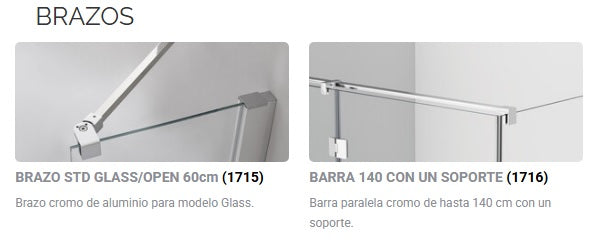

📐 Ver tipos de soporte
Front shower screen with 8mm fixed panel plus 6mm hinged door with stainless steel hinge, with magnetic profile closure. Tempered glass and aluminum profiles. Modern minimalist design without lower profiles. Sizes to choose.
Immediate delivery.
TYPE OF PROFILES
Polished silver shiny aluminum profiles.
ADJUSTMENT AND COMPENSATION PROFILES
The vertical profiles of the shower screen allow the adjustment of the screen and enable us to adapt it correctly to the conditions of the work, overcoming any unevenness that may exist in the walls and adjusting to the necessary light opening.
Specifically, the Glass model's profiles allow for compensation from 1.5 cm to 6 cm (depending on the chosen COMBI), which will allow us to overcome any discrepancies that may exist in the walls.
The Glass model is in stock in pre-established standard sizes and with ranges that allow us to adapt to the opening (see Glass model tables in the catalog). These ranges (minimum and maximum measurements) will be achieved with the extension system retracted or fully open.
GLASS AND DECORATIONS
GME only works with tempered glass shower screens. Tempered glass is a type of safety glass, processed with thermal or chemical treatments to increase its strength compared to normal glass. When tempered glass breaks, it shatters into many small pieces instead of splintering into large jagged fragments. These tiny pieces are less likely to cause injury.
This shower screen has 6 mm thick tempered safety glass in the doors and 8 mm in the fixed panels.
The Glass shower screen is available with clear glass, another decoration option is our adhesive vinyls (delivery time 7 days).
LIFTING UPON ROTATION
This shower screen is equipped with a lifting system when the folding leaf rotates, integrated into the vertical profile, by means of which the door lifts as we open it.
OPENING
The opening system is by means of folding leaves that allow a 90º rotation towards the outside of the shower tray.
CLOSING SYSTEM
The closing system of the shower screen is by magnetic closure, which provides great comfort and watertightness when closing the screen.
WATERTIGHTNESS
In the lower part of each folding leaf, a drip rubber will be inserted and a 0.5x0.5 cm aluminum metal drip channel will be installed on the tray.
| ANTI-CALC TREATMENT | Yes |
| GLASS THICKNESS (mm) | 8/6 |
| HEIGHT (cm) | 195 |
| WARRANTY (years) | 3 |
| REVERSIBLE | Yes |
| QUALITY STANDARD | UNE-EN 14428:2005 + A1:2008 |
| LEAF RELEASE BUTTON | No |
| SOFT-CLOSE MECHANISM | No |
| OPENING (cm) | 43 |
| CATALOG REFERENCE | GL2050D |
| ASSEMBLY INSTRUCTIONS | Download assembly instructions |
| PACKAGES | 4 |
