Frontal shower screen with 2 bifold doors OPEN

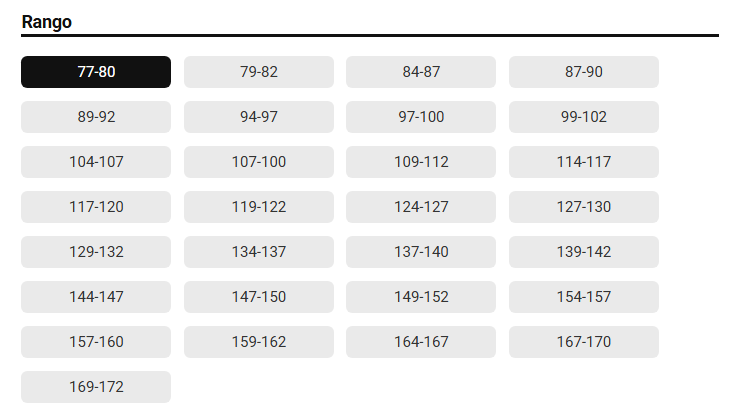

📏 Ver rango de medidas
Shower screen composed of two folding doors with front closing, 6mm clear glass with anti-limescale treatment and polished chrome aluminum profiles.
Immediate delivery.
TYPE OF PROFILES
Polished bright silver aluminum profiles.
ADJUSTMENT AND COMPENSATION PROFILES
The vertical profiles of the shower screen allow for adjustment of the screen, enabling it to be correctly adapted to site conditions, overcoming any potential unevenness in the walls, and adjusting to the required opening size.
Specifically, the Open model's profiles allow for compensation ranging from 1.5 cm to 6 cm (depending on the chosen COMBI), which will allow us to compensate for any unevenness in the walls.
The Open model is available in stock in established standard sizes and with ranges that allow us to adapt to the opening (see Open model tables in the catalog). These ranges (minimum and maximum measurements) will be achieved with the extension system retracted or fully extended.
GLASS AND DECORATIONS
GME only works with tempered glass screens. Tempered glass is a type of safety glass, processed with thermal or chemical treatments to increase its strength compared to normal glass. When broken, tempered glass shatters into many small pieces instead of splintering into large, jagged fragments. These tiny pieces are less likely to cause injury.
This shower screen has 6 mm thick tempered safety glass.
The Open shower screen is available with clear glass, another decorative option is our adhesive vinyls (delivery time 7 days).
LIFTING ON ROTATION
This shower screen is equipped with a lifting system when the folding leaf is rotated, integrated into the vertical profile, by which the door lifts as we open it.
OPENING
The opening system is by means of folding leaves that allow a 90º turn outwards or inwards of the shower tray. If you want the door to open both inwards and outwards, you can order the IN-OUT 180º kit.
CLOSING SYSTEM
The closing system of the shower screen is by magnetic closure, which provides great comfort and watertightness when closing the screen.
SEALING
At the bottom of each folding leaf, a drip-strip will be inserted, and a 0.5x0.5 cm aluminum metallic drip-strip will be installed on the tray.
| ANTI-LIMESCALE TREATMENT | Yes |
| GLASS THICKNESS (mm) | 6 |
| HEIGHT (cm) | 195 |
| WARRANTY (years) | 3 |
| REVERSIBLE | Yes |
| QUALITY STANDARD | UNE-EN 14428:2005 + A1:2008 |
| LEAF RELEASE BUTTON | No |
| SOFT-CLOSE | No |
| OPENING (cm) | 66 |
| CATALOG REFERENCE | OP4040IR |
| ASSEMBLY INSTRUCTIONS | Download assembly instructions |
| PACKAGES | 3 |
