Front fixed panel + door with magnetic closure OPEN
📐 Ver tipos de soporte

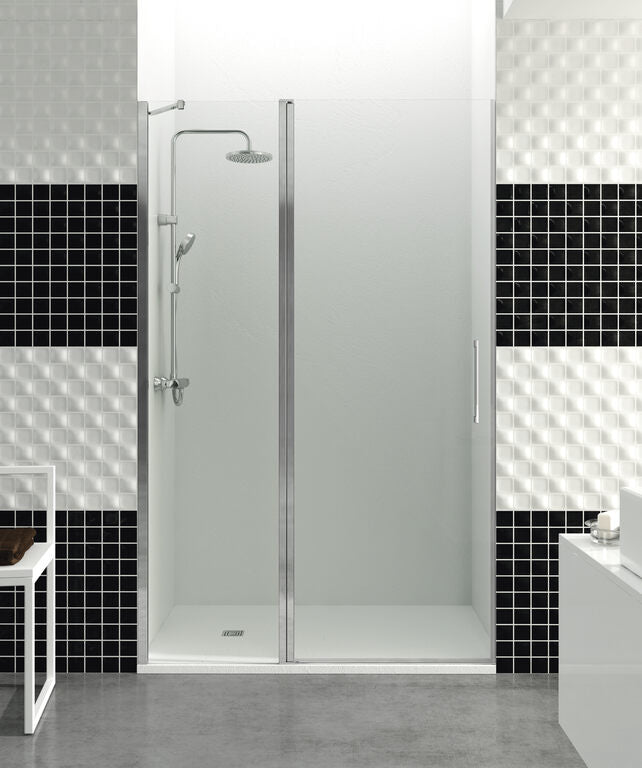

Front shower screen with fixed panel plus a hinged door with magnetic wall closure, polished bright aluminum profiles with 6mm clear tempered glass and anti-limescale treatment. Modern minimalist design with no bottom profiles. Customizable measurements.
Immediate delivery.
PROFILE TYPE
Profiles in polished bright silver aluminum.
ADJUSTMENT AND COMPENSATION PROFILES
The vertical profiles of the shower screen allow for adjustment, ensuring correct adaptation to site conditions, accommodating potential wall unevenness, and fitting the required opening.
Specifically, the Open model's profiles allow for a compensation of 1.5 cm. to 6 cm. (depending on the COMBI selected), which will enable us to compensate for any unevenness in the walls.
The Open model is available in stock in established standard sizes with ranges that allow us to adapt to the opening (see Open model tables in the catalog). These ranges (minimum and maximum measurements) will be achieved with the extension system fully retracted or fully open.
GLASS AND DECORATIONS
GME only works with tempered glass screens. Tempered glass is a type of safety glass, processed with thermal or chemical treatments to increase its strength compared to normal glass. When tempered glass breaks, it shatters into many small pieces instead of large jagged fragments. These tiny pieces are less likely to cause injury.
This shower screen has 6 mm thick tempered safety glass.
The Open shower screen is available with clear glass, another decorative option is our adhesive vinyls (delivery time 7 days).
LIFT-UP ON OPENING
This shower screen is equipped with a lift-up system integrated into the vertical profile, which lifts the door as it is opened.
OPENING
The opening system uses hinged panels that allow a 90º swing outwards or inwards of the shower tray. If you want the door to open both inwards and outwards, you can order the IN-OUT 180º kit.
CLOSING SYSTEM
The shower screen's closing system is magnetic, providing great comfort and watertightness when closing the screen.
WATERTIGHTNESS
A water deflector rubber will be inserted at the bottom of each hinged panel, and a 0.5x0.5 cm metallic aluminum water deflector will be installed on the tray.
| ANTI-LIMESCALE TREATMENT | Yes |
| GLASS THICKNESS (mm) | 6 |
| HEIGHT (cm) | 195 |
| WARRANTY (years) | 3 |
| REVERSIBLE | Yes |
| QUALITY STANDARD | UNE-EN 14428:2005 + A1:2008 |
| DOOR RELEASE BUTTON | No |
| SOFT-CLOSE MECHANISM | No |
| OPENING (cm) | 43 |
| CATALOG REFERENCE | OP2050C |
| ASSEMBLY INSTRUCTIONS | Download assembly instructions |
| PACKAGES | 2 |
