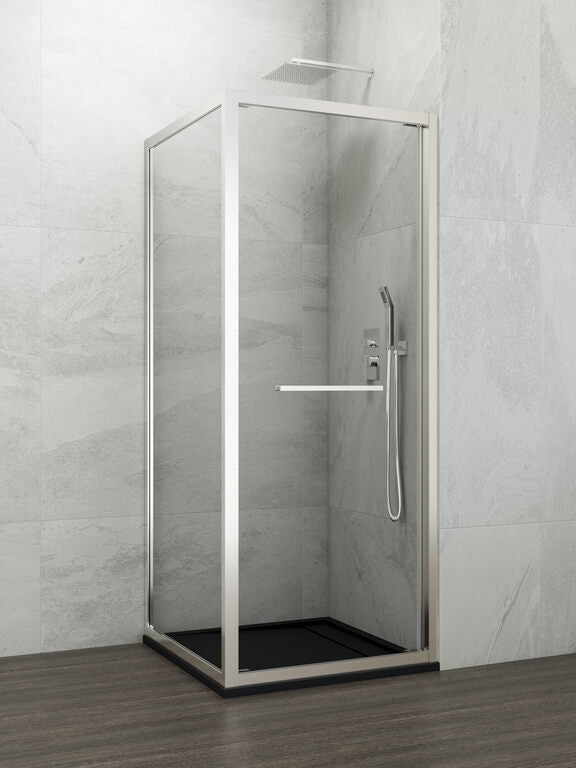

Corner shower screen with hinged door + fixed panel SPAZIO
Transparent front shower screen with folding-sliding door plus fixed side panel, minimalist polished chrome aluminum profiles with 6mm tempered glass and anti-limescale treatment. 4 adjustable double rollers to maximize available space.
Immediate delivery.
TYPE OF PROFILES
Polished chrome silver and matte black aluminum profiles
ADJUSTMENT PROFILES
The Spazio model is in stock in pre-established standard sizes with ranges that allow us to adapt to the opening (see Spazio model tables in the catalog). These ranges are achieved by adapting the side profile to the necessary size. Therefore, during installation it will be necessary to cut the upper rail to adapt it to our opening; a hacksaw for steel will suffice for this.
GLASS AND DECORATIONS
GME only works with tempered glass screens. Tempered glass is a type of safety glass, processed with thermal or chemical treatments to increase its strength compared to normal glass. When tempered glass breaks, it shatters into many small pieces instead of splintering into large jagged fragments. These tiny pieces are less likely to cause injury.
This shower screen has 6 mm thick tempered safety glass.
The screen can be chosen with clear glass.
Another decoration option is our adhesive vinyls (delivery time 7 days).
OPENING
The opening system is via 1 pivot door, which is fitted with rollers that slide along the top and bottom guides.
CLOSING SYSTEM
The closing system for the Spazio front with 1 pivot door is by means of a bubble gasket, which is inserted into the door and closes by entering the vertical profile.
The closing system in the front + fixed side format is by magnetic closure.
WATER TIGHTNESS
The shower screen has vertical water-deflecting gaskets to ensure watertightness in the door opening.
The shower screen has upper and lower profiles, which guarantees perfect watertightness.
| ANTI-CALC TREATMENT | Yes |
| GLASS THICKNESS (mm) | 6 |
| HEIGHT (cm) | 195 |
| WARRANTY (years) | 3 |
| REVERSIBLE | Yes |
| QUALITY STANDARD | UNE-EN 14428:2005 + A1:2008 |
| LEAF RELEASE BUTTON | No |
| SOFT-CLOSE MECHANISM | No |
| OPENING (cm) | 49 |
| CATALOG REFERENCE | 1260+1215+1263 |
| ASSEMBLY INSTRUCTIONS | Download assembly instructions |
| PACKAGES | 3 |
