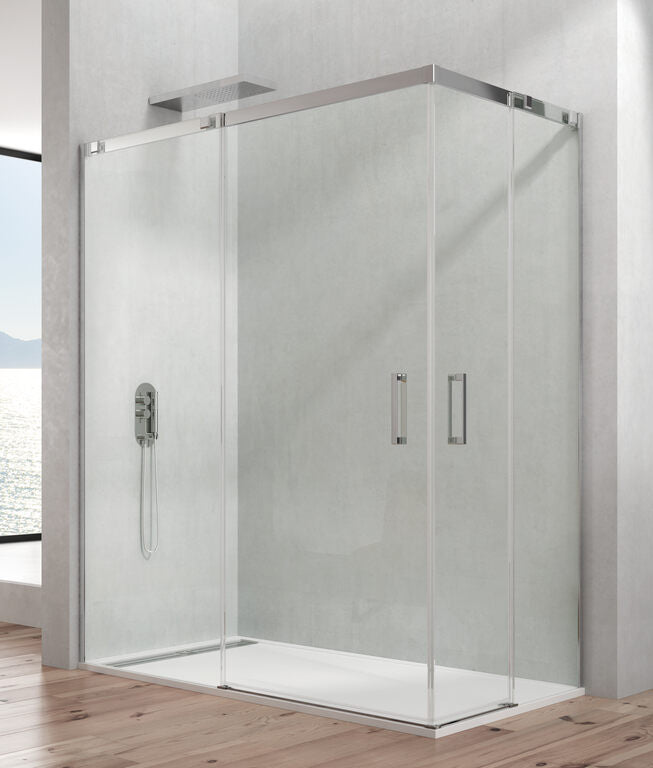

Transparent corner shower screen with two fixed panels and two sliding doors, minimalist polished stainless steel profiles with 6mm tempered glass and anti-limescale treatment. Silent double nylon bearings with a modern design and no bottom profile.

Immediate delivery.

TYPES OF PROFILES
Stainless steel profiles treated with a process known as mirror polishing (shine comparable to chrome plating) which makes them easier to clean.

ADJUSTMENT AND COMPENSATION PROFILES
The vertical profiles of the shower screen allow the screen to be adjusted and adapted correctly to the conditions of the installation, compensating for any unevenness that may exist in the walls and adjusting to the required opening.
Specifically, the width of the Temple model's profiles is 2.3 cm, which will allow us to compensate for any unevenness that may exist in the walls of our shower tray or bathtub. The Temple model is available in standard established measurements with ranges that allow us to adapt to the opening (see Temple model tables in the catalog).
These ranges are achieved by adapting the upper guide to the necessary measurement and with a greater or lesser overlap of the door over the fixed panel (1-6 cm). Therefore, during installation, it will be necessary to cut the upper guide to adapt it to our opening, for which a steel cutting saw will suffice.

GLASS AND DECORATIONS
GME only works with tempered glass shower screens. Tempered glass is a type of safety glass, processed with thermal or chemical treatments to increase its strength compared to normal glass. When tempered glass breaks, it shatters into many small pieces instead of splintering into large, jagged fragments. These tiny pieces are less likely to cause injury.
This shower screen has 6 mm thick tempered safety glass.
The screen is available for immediate delivery with transparent or frosted plus screen-printed glass and with stroke screen printing in 15 days. Another decoration option is our adhesive vinyls (7-day delivery time) or the possibility of digital printing (20-day delivery time).
The Temple screen can be made completely to measure, modifying the width, height, or by making cutouts in any of its glass panels. The delivery time will be 15 days.

ANTI-CALCAREOUS TREATMENT
This screen includes anti-limescale treatment as standard, which covers the micropores of the glass, preventing limescale buildup and facilitating glass cleaning.

OPENING
The opening system is by means of sliding leaves, which are equipped with bearings that slide along the upper guide.

SLIDING LEAF RELEASE
This shower screen is provided with a leaf release system, integrated into the lower guide, by which the doors can be released from the lower support, thus facilitating cleaning.

CLOSING SYSTEM
The closing system varies from the front model with fixed and sliding panels to corner models with vertex opening and corner with fixed side.
The closing system for the front model with fixed and sliding panels is by means of a bubble gasket, which is inserted into the sliding leaf and closes by entering a U-shaped stainless steel vertical profile.
The closing system for corner formats is by magnetic closure.

WATERPROOFING
The shower screen has vertical drip-proof gaskets to guarantee watertightness in the gap between the sliding leaf and the fixed glass.
The shower screen has no guide in the lower part of the screen, so, to provide good watertightness, we must install a drip-proof gasket in the lower part of the slide and a metallic drip rail on the shower tray (1 cm high and 0.6 cm wide).

Technical Data Sheet
