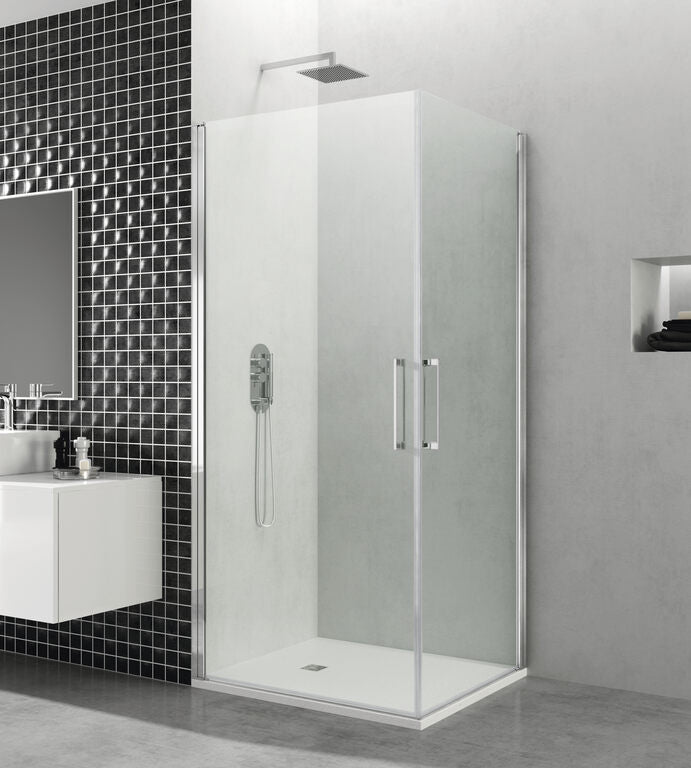

Corner shower screen 2 OPEN hinged doors

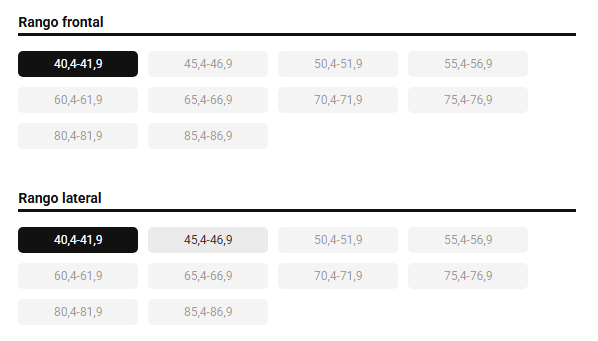

📏 Ver rango de medidas
Corner shower screen composed of two hinged doors with 6mm clear glass with anti-limescale treatment, magnetic closure, and minimalist polished chrome aluminum profiles. Immediate delivery.
PROFILE TYPE
Polished bright silver aluminum profiles.
ADJUSTMENT AND COMPENSATION PROFILES
The vertical profiles of the shower screen allow for adjustment and ensure that we can correctly adapt it to the conditions of the installation, compensating for any unevenness that may exist in the walls and adjusting to the necessary opening.
Specifically, the Open model's profiles allow for compensation from 1.5 cm to 6 cm (depending on the COMBI chosen), which will allow us to compensate for any unevenness in the walls.
The Open model is available in stock in established standard measurements and with ranges that allow us to adapt to the opening (see Open model tables in the catalog). These ranges (minimum and maximum measurements) will be achieved with the extension system retracted or fully extended.
GLASS AND DECORATIONS
GME only works with tempered glass shower screens. Tempered glass is a type of safety glass, processed with thermal or chemical treatments to increase its strength compared to normal glass. When tempered glass breaks, it shatters into many small pieces instead of large, jagged fragments. These tiny pieces are less likely to cause injury.
This shower screen has 6 mm thick tempered safety glass.
The Open shower screen is available with clear glass; another decoration option is our adhesive vinyls (delivery time 7 days).
LIFT-UP MECHANISM WHEN TURNING
This shower screen is equipped with a lift-up system when the hinged leaf turns, integrated into the vertical profile, by means of which the door lifts as we open it.
OPENING
The opening system is by means of hinged leaves that allow a 90º turn outwards or inwards of the shower tray. If you want the door to open both inwards and outwards, you can order the IN-OUT 180º kit.
CLOSING SYSTEM
The shower screen's closing system is a magnetic closure, which provides great comfort and watertightness when closing the screen.
WATERTIGHTNESS
A water deflector strip will be inserted at the bottom of each hinged leaf, and a 0.5x0.5 cm aluminum metal water deflector will be installed on the tray.
| ANTI-CALC TREATMENT | Yes |
| GLASS THICKNESS (mm) | 6 |
| HEIGHT (cm) | 195 |
| WARRANTY (years) | 3 |
| REVERSIBLE | Yes |
| QUALITY STANDARD | UNE-EN 14428:2005 + A1:2008 |
| LEAF RELEASE BUTTON | No |
| SOFT-CLOSE | No |
| OPENING (cm) | 66 |
| CATALOG REFERENCE | OP4040K |
| ASSEMBLY INSTRUCTIONS | Download assembly instructions |
| PACKAGES | 3 |
